Mar. 18, 2025
In an era where space optimization and functional design are paramount, the 19 inch desktop case has emerged as a cornerstone of industrial and commercial computing systems. Combining standardized dimensions with robust construction, this form factor delivers exceptional flexibility across diverse professional environments.

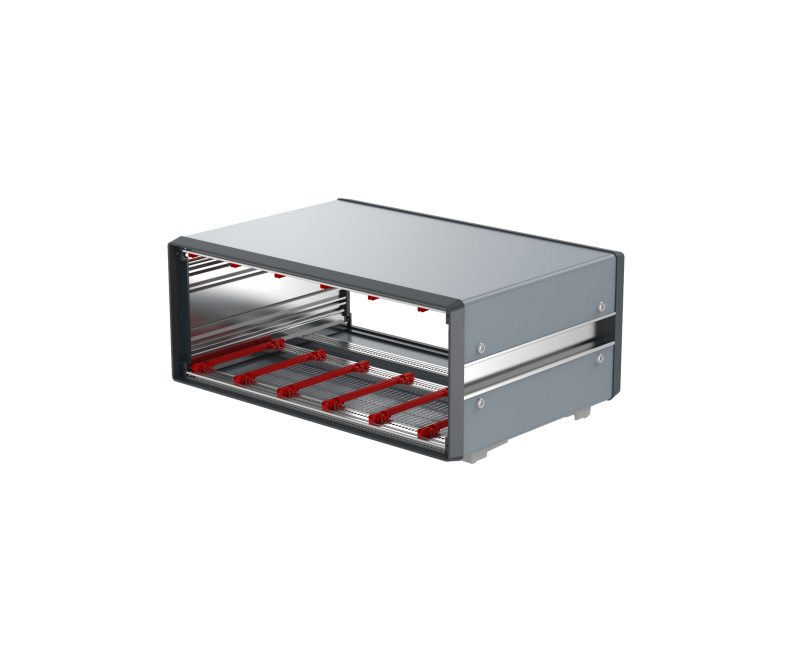

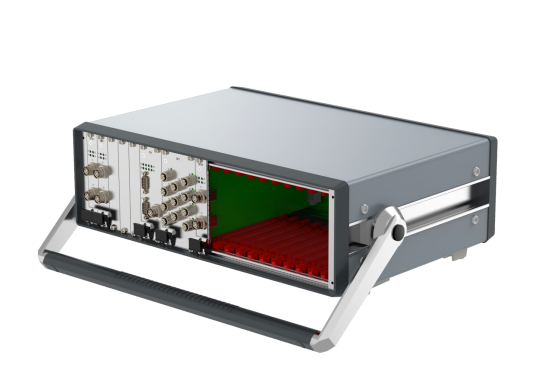

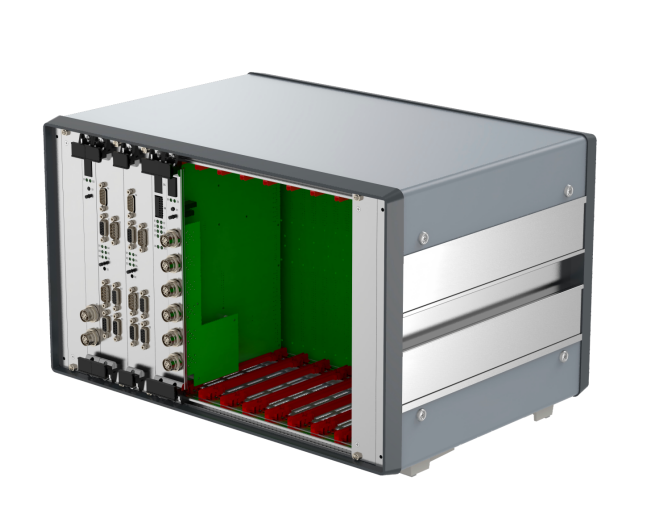

The 19 inch desktop case adheres to EIA-310 rack standards while adapting the design for desktop placement. Key specifications include:
Compact Dimensions: Typical models measure 482.6mm (W) × 430mm (D) × 88mm (H), optimizing desk space
Multi-Platform Compatibility: Supports ATX, Micro-ATX, and Mini-ITX motherboards
Thermal Management: Modular cooling system with 3×120mm PWM fans and liquid cooling support
Tool-Free Design: Removable drive cages and PCIe expansion slots
Material Engineering: SECC steel construction with vibration-dampened HDD mounts
Security Features: Kensington lock slot and front panel authentication options
The chassis accommodates up to 8×3.5" HDDs or 12×2.5" SSDs through modular drive bays, making it ideal for storage-intensive applications. Front panel I/O typically includes USB 3.2 Gen 2 Type-C, dual USB 3.0, and HD audio ports.
Deployed as edge computing nodes and 5G network controllers, these chassis provide:NEBS Level 3 compliance for central offices
EMI shielding for RF-intensive environments
Hot-swappable PSU support (800W-2000W)
In manufacturing environments, 19-inch desktop systems serve as:PLC controllers with IP54-rated front panels
Machine vision processing units
DIN rail mounting compatibility for control cabinets
Video production teams utilize these chassis for:4K/8K video editing workstations
RAID-configured media servers
PCIe 5.0 expansion for capture cards
Small businesses benefit from:Multi-function server/NAS hybrid configurations
Silent operation (<25dB) for office environments
Cost-effective upgrade paths
The 19 inch desktop format bridges the gap between rack-mounted servers and consumer PCs:
Scalability: Supports dual-CPU configurations and up to 4× full-length GPUs
Maintenance Efficiency: Front-accessible component trays reduce service downtime
Standardization: Compatible with 19" rack accessories when vertical stacking
Environment Tolerance: Operating range from -10°C to 50°C with 90% humidity
Recent adaptations include:
AI inference engines with GPU clusters
Modular cryptocurrency mining rigs
Medical imaging stations with MIL-STD-810G shock resistance
