Jul. 27, 2024

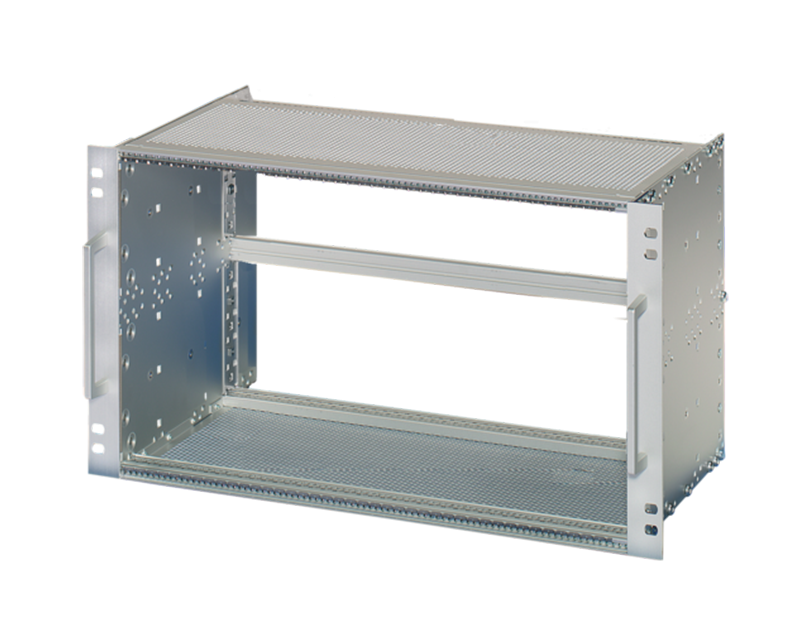

Subracks, also known as card cages or chassis, are essential components in electronic systems, providing a robust and organized structure for mounting circuit boards and other electronic modules. When selecting subracks for your application, several key factors should be considered to ensure optimal performance and compatibility. Here are six important things you should know before buying subracks:
Ensure Compatibility with Your Equipment:
· Board Size: Verify that the subrack is compatible with the size of the circuit boards or modules you intend to mount. Common standards include Eurocard sizes (100mm x 160mm, 100mm x 220mm, etc.).
· Bus Architecture: Check that the subrack supports the bus architecture of your system, such as VMEbus, CompactPCI, or VPX.
Adherence to Industry Standards:
· Look for subracks that comply with industry standards like IEC 60297 or IEEE 1101.10, which ensure interoperability and reliability.
Material Quality:
· Subracks are typically made from aluminum or steel. Aluminum subracks are lightweight and offer good thermal conductivity, while steel subracks provide superior strength and durability.
Environmental Resistance:
· Consider the operating environment. For harsh conditions, opt for subracks with corrosion-resistant coatings or special treatments to withstand moisture, dust, and temperature extremes.
Heat Dissipation:
· Effective thermal management is crucial to prevent overheating and ensure the longevity of your electronic components. Look for subracks with built-in ventilation slots, fans, or provisions for heat sinks.
Airflow Design:
· Ensure the subrack design allows for adequate airflow around the components. Some subracks come with options for front-to-back or bottom-to-top airflow to match your cooling requirements.
Modular Design:
· Choose subracks with a modular design that allows for easy customization and scalability. This is particularly important if your system requirements may change or expand in the future.
Mounting Options:

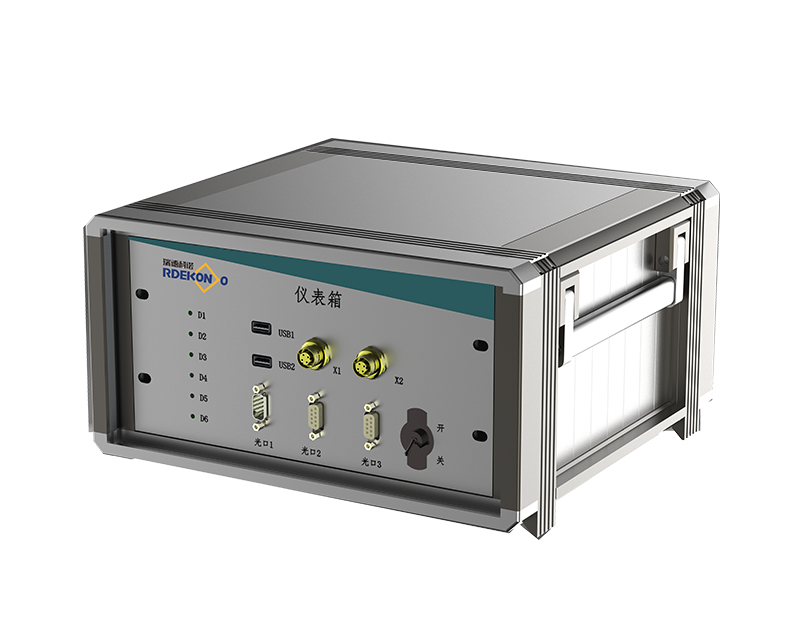

· Consider the different mounting options available, such as 19-inch rack mounting, desktop use, or wall mounting. Ensure the subrack can be easily integrated into your existing setup.
User-Friendly Design:
· Look for subracks that are easy to assemble and disassemble. Tool-less designs or those with minimal screws and fasteners can save time during installation and maintenance.
Access and Cable Management:
· Ensure the subrack provides sufficient access to the components for maintenance and troubleshooting. Good cable management features, such as cable trays or guides, help keep the installation tidy and reduce the risk of damage to cables and connectors.
Budget Considerations:
· While it’s important to find a subrack that meets all your technical requirements, it should also fit within your budget. Compare prices from different suppliers and consider the total cost of ownership, including any additional accessories or components needed.
Supplier Reliability:
· Choose a reputable supplier with a track record of providing high-quality subracks and reliable customer service. Check reviews and seek recommendations to ensure you’re purchasing from a trusted source.
Lead Times and Stock Availability:
· Consider the lead time for delivery and ensure that the supplier can meet your project deadlines. Check if the subracks are readily available or if there are any long lead times that could delay your project.
Selecting the right subrack is a critical decision that impacts the performance, reliability, and longevity of your electronic systems. By considering compatibility, construction materials, thermal management, customization, ease of assembly, and cost, you can make an informed choice that meets your specific needs. Always prioritize quality and reliability to ensure your investment supports your application effectively.
Rdekono supplies and manufactures a wide range of subracks. Do you want to receive more information about subracks? Then we are happy to answer your questions. Fill in the contact form or send an email to https://www.rdekono.com.
