Application of Subracks in Telecom ODF Setups

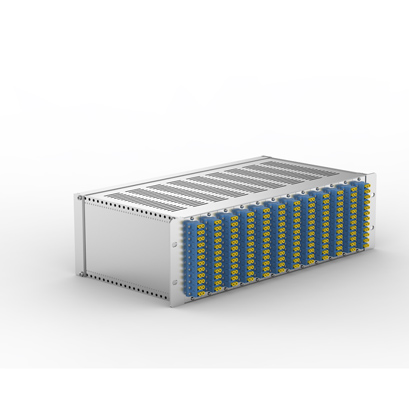

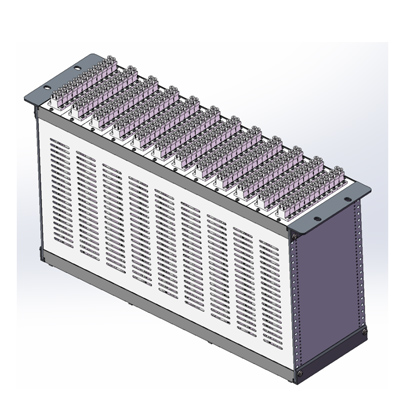

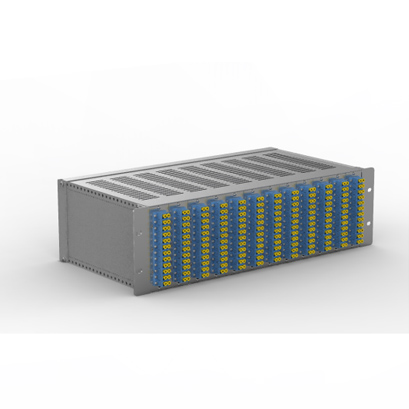

A 19" 3U subrack is specifically tailored to organize Optical Distribution Frames (ODF) in telecom networks. Here’s a closer look at how it’s applied in ODF setups within telecom:

1. Space-Efficient Fiber Management

·3U Height: The 3U size (about 5.25 inches in height) is optimal for compactly housing ODFs within a standard 19" rack. This height provides enough room for handling fiber connections while keeping the footprint minimal, crucial for data centers and telecom facilities where space is valuable.

2. Fiber Termination and Distribution

· The subrack can hold fiber termination panels, patch panels, and adapters for optical fibers, organizing them within a protected enclosure. This organization simplifies the distribution and connection of fiber cables in a network, supporting clear, efficient routing between fiber links.

3. Efficient Patch Cord Management

· 3U subracks often include trays or modules with cable management features designed for patch cords. These features reduce tangling, minimize signal loss due to bending, and make it easy to trace and modify connections, which is essential for maintaining a robust telecom network.

4. High-Density Fiber Connectivity

· Telecom ODF setups often require a high density of fiber connections, especially in areas with heavy data traffic. The 3U subrack’s modular design supports a significant number of fiber connections in a small area, maximizing capacity within a minimal footprint and reducing overall space requirements in telecom facilities.

5. Protection and Accessibility

· The subrack provides physical protection for optical fibers, shielding them from external damage, dust, and bending, which could degrade performance. Many 3U subracks are designed with sliding trays or modular sections, allowing technicians easy access to connections for maintenance and troubleshooting without disrupting adjacent fibers.

6. Applications in ODF for Telecom

· Central Offices and Data Centers: Used to house ODF systems in facilities where multiple fiber connections need to be managed, connected, or distributed.

· Base Stations and Remote Sites: Often deployed in telecom towers and base stations to manage fiber connections for high-speed data transmission.

· FTTH (Fiber to the Home): Supports the distribution of fiber connections in FTTH networks, where connections are routed from the central office to customer premises.

In summary, a 19" 3U subrack is a vital component in telecom ODF setups, allowing for compact, organized, and protected fiber management. It maximizes space efficiency while supporting high-density fiber connections, making it essential for modern telecom infrastructure.
