Extractor Handle Subrack Accessories PCB Puller for PCB Board Insertion and Extraction

As a leading manufacturer of 19-inch subracks, RDEKONO not only produces Eurocard-compliant subracks but also offers a comprehensive range of subrack accessories. Shown below are the extractor handle manufactured in our facility.

PCB puller is mainly used for unplugging PCB boards and installing external connectors, providing additional installation torque forexternal connectors and improving thereliability of electrical connections.The front end of eurocard is welded with connectors that comply with DlN41612 standard. Which are used in conjunction with external connectors for front-end outgoing lines.

RDEKONO supply various types of extractor handle to meet the needs of customers for different applications. Can also support customization.

The main use of the PCB puller：

For PCB board of the subrack insertion and extraction, provides assistance when pulled out.

• Composed of four parts: handle, scutcheon, printed board bracket, and shaft.

• Handle material: PC+GF20%.

• Fire retardant standard: UL94V1.

• Printed board bracket material: die-cast zinc alloy surface nickel plating.

• scutcheon material: 6063T5, Shaft material: brass.

Product description:

This productis mounted on the insert paneland connected directly to the PCB.

• For PCB board insertion and extraction.

• 3U panel requires only one handle below.

• Plastic parts can be screen printed on thefront.

• Works with card guides.

• Compliant with lEEE1101.10 standard.




Signage purchased separately, signage textcan be customized.

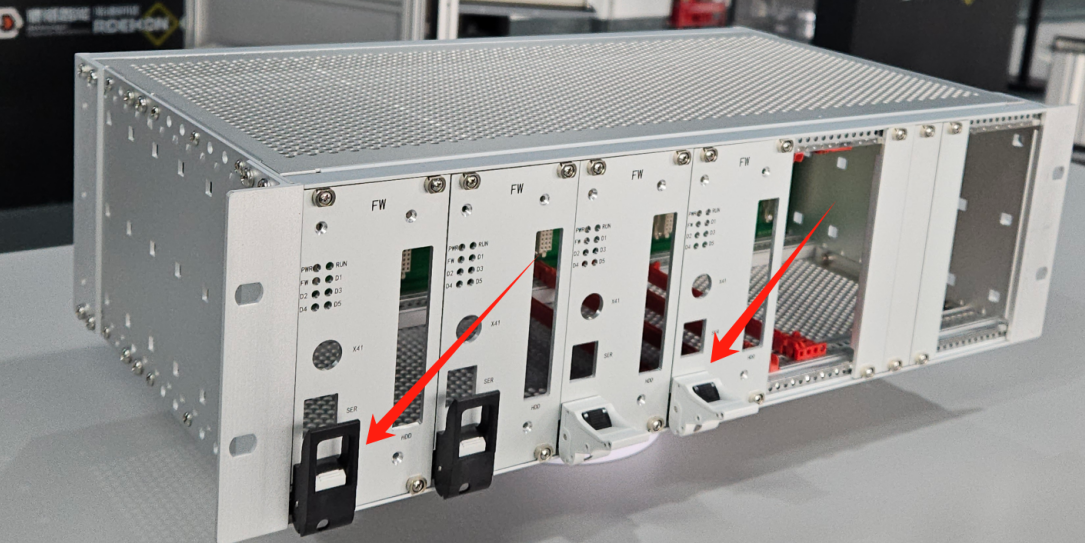

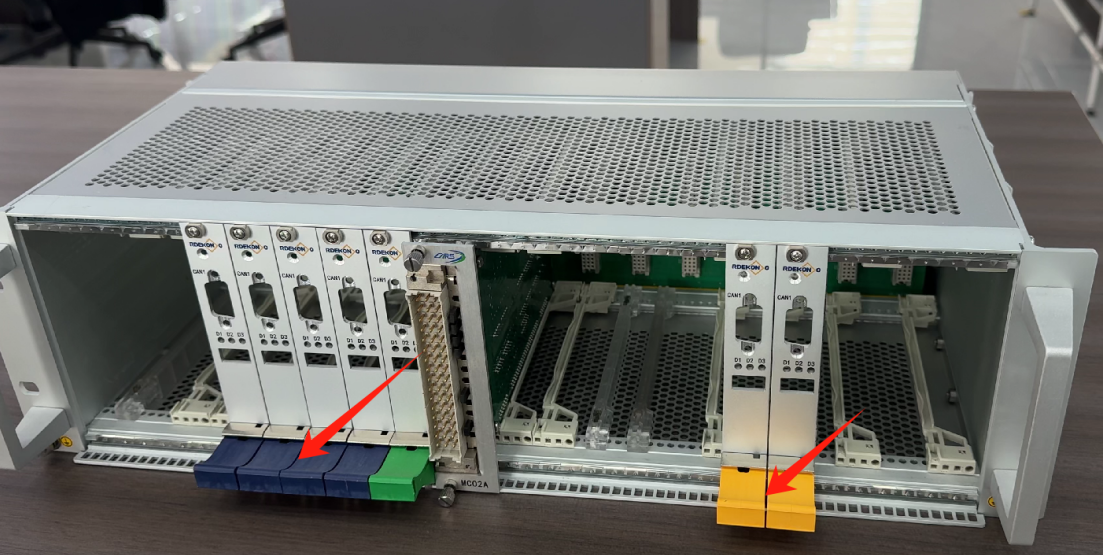

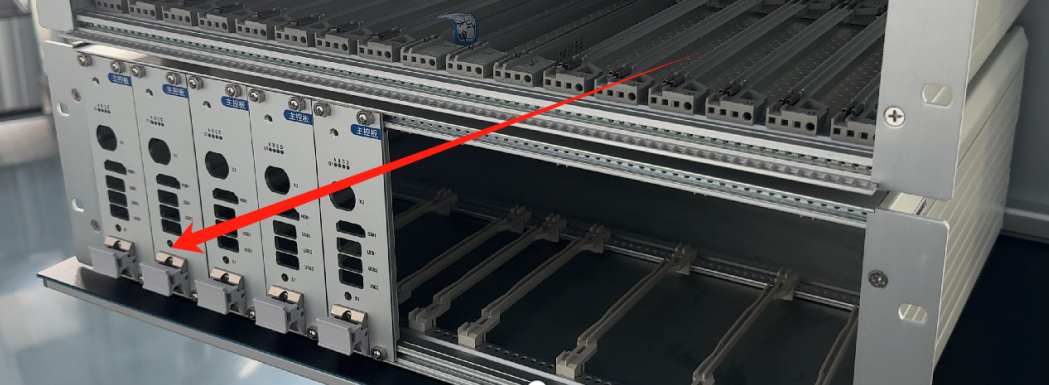

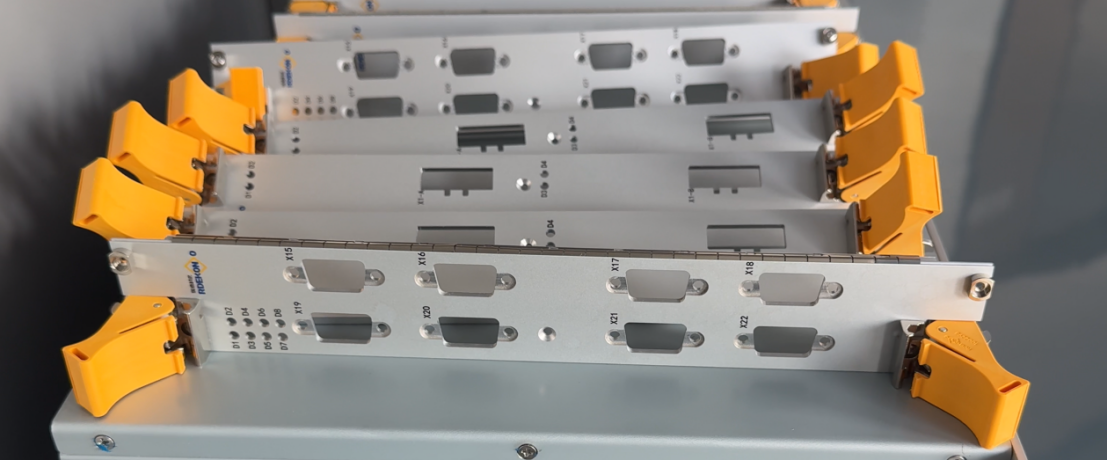

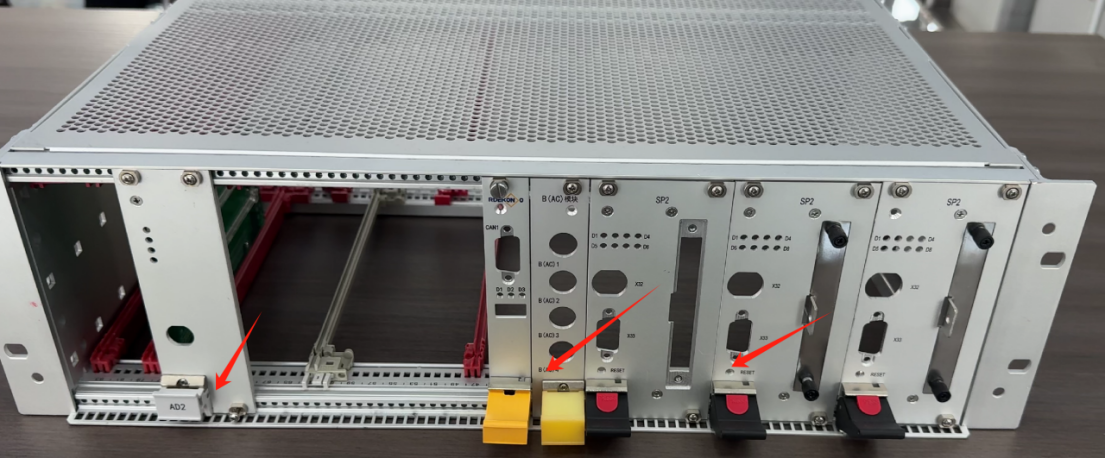

The PCB puller is used for inserting and extracting PCB boards in sub-racks, providing assistance during the extraction process. When working with 3U boards, only the bottom handle needs to be installed, and a single handle is sufficient. For 6U plug-in boards, two handles must be installed at both the top and bottom.
