How to Design Personalized Subrack?

Jan. 10, 2024

The subrack is a standard electronic mechanical structure, and its core standard is to specify the board size 3U, height depth dimension=100mm x 160mm or 100mm x 220mm, and other depth dimensions are multiples of 10mm. The size of the 6U board is 233.35mmX160mm or 233.35mmX220mm, and other non-standard depth dimensions are increased in multiples of ten.

How to Design Personalized Subrack?


Under this standard, there is a wide range of accessories to choose from to meet various usage needs, with the characteristic of low cost and fast delivery.


But some companies hope that their products have their own appearance characteristics and stand out among similar products in order to attract customers.


So how can one make their product stand out? How to design such products?


When designing such products, overall consideration should be given, considering the principle of PLM management throughout the product lifecycle.


How to Design Personalized Subrack?

01 Identify areas for improvement and improvement


02 Space allows for consideration of increasing appearance design


03 Standard Structure Lower Panel Can Do Some Styling Design

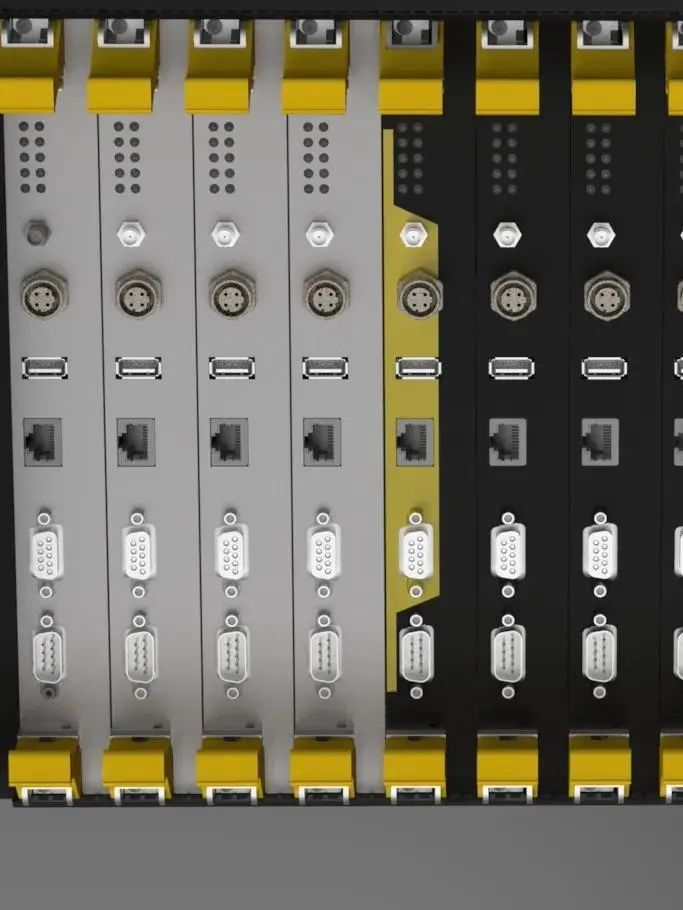

04 Matching of Different Colors on the Outer Surface


05 Decorative appearance structural components

How to Design Personalized Subrack?


Personalized design cannot be ignored, whether the processing technology of the entire structure can meet the needs of cost control. Otherwise, the product would be unique, but customers would not be able to afford it due to high costs.


The design of such electronic and mechanical structures can only be considered as excessive design.
