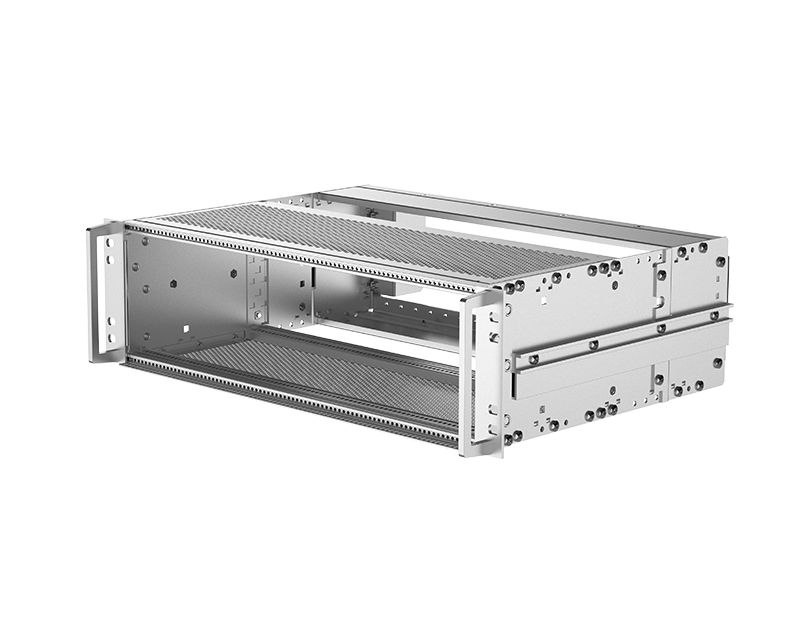

Subrack systems are essential for organizing, protecting, and integrating various electronic modules and printed circuit boards (PCBs) in different industries, such as telecommunications, data centers, military applications, and industrial control systems. Choosing the right subrack system requires a thorough understanding of your project’s technical needs, environmental conditions, and long-term scalability. This buying guide will help you make an informed decision by highlighting the critical factors to consider when purchasing a subrack system.
Before selecting a subrack system, identify the specific requirements of your application. Consider the type of electronic components that need to be housed, including PCBs, power supplies, and communication modules. Your subrack system should be compatible with these components and provide enough space for proper installation.
Key Considerations: Think about the size, weight, and quantity of modules that will be installed in the subrack. Also, assess the environmental conditions in which the system will operate, such as temperature, humidity, and potential exposure to dust or chemicals. Ensure that the subrack system complies with industry standards, such as IEC 60297 or IEEE specifications.
Subrack systems come in various sizes and form factors to accommodate different application needs. The size of the subrack system typically corresponds to standard rack unit measurements (e.g., 3U, 6U, 9U). Rack units (U) refer to the height of the system, where 1U equals 1.75 inches. You should also consider the depth and width of the subrack system to ensure it fits within your overall setup.
How to Choose: Measure the dimensions of your electronic modules and ensure that the chosen subrack system provides adequate space. Compatibility with existing racks or enclosures should also be checked, especially if your system requires a specific form factor, such as 19-inch rackmount compatibility.
The material and build quality of the subrack system are crucial for its durability, structural integrity, and thermal management. Common materials include aluminum, steel, and reinforced plastic, each offering different levels of protection, weight, and heat dissipation. Aluminum is favored for its lightweight and excellent thermal conductivity, while steel is known for its strength and durability in rugged environments.
What to Look For: Choose materials that match your system’s operational requirements. If your application involves high temperatures, consider aluminum subracks for better heat dissipation. Ensure that the subrack system is well-constructed with smooth edges, accurate dimensions, and sturdy assembly points.
Thermal management is a critical factor in subrack systems, as overheating can lead to electronic failure. Subrack systems often feature built-in ventilation slots or can accommodate additional cooling solutions like fans and heat sinks. Effective cooling ensures that electronic components operate within safe temperature ranges, enhancing system reliability.
How to Optimize: Assess your system’s heat output and select a subrack system with appropriate ventilation. If necessary, consider systems that allow for the integration of active cooling elements like fans. Ensure there is adequate airflow around your components to prevent heat buildup.
Depending on your project, you might need a subrack system that offers customization and expandability. Some subrack systems are modular, allowing you to add or remove components and reconfigure layouts as needed. This flexibility can be crucial if your system is expected to evolve over time or if you require specific connectors, mounting options, or other custom features.
Why It Matters: Customizable subrack systems ensure that you can meet the exact needs of your application. If you anticipate future growth, choose a system that allows for easy expansion. Modular designs can help you save on costs by enabling reconfiguration rather than replacement as your system changes.
Electromagnetic interference (EMI) and radio-frequency interference (RFI) can disrupt electronic signals and degrade system performance. In sensitive environments, such as telecommunications or military applications, effective EMI/RFI shielding is essential. Subrack systems should offer protection against these interferences, either through conductive materials or specialized coatings.
How to Ensure Protection: Choose subrack systems made from conductive materials like aluminum or steel, which naturally block EMI/RFI. Additionally, look for systems with tight seals and gaskets to prevent interference from leaking into the enclosure. Verify that the subrack meets relevant EMI/RFI standards.
Q: Can subrack systems be used in outdoor environments?
A: Yes, some subrack systems are designed for outdoor use. Look for systems with weatherproofing, corrosion resistance, and ruggedized construction to withstand exposure to the elements. Be sure to select a subrack system that meets IP ratings for dust and water resistance if outdoor use is required.
Q: How can I improve cooling in my subrack system?
A: To enhance cooling, choose subrack systems with sufficient ventilation or consider adding fans or heat sinks. Proper cable management and spacing between components can also improve airflow. Additionally, consider materials like aluminum, which naturally aid in heat dissipation.
Q: Are there any standards I should follow when choosing a subrack system?
A: Yes, many industries follow standards like IEC 60297, IEEE, or MIL-SPEC for subrack systems. These standards ensure that subrack systems meet specific dimensional, performance, and environmental requirements. Make sure your selected subrack system complies with the standards relevant to your industry.
By taking the time to assess your application’s requirements, choosing the right size and material, and considering customization options, you can find a subrack system that perfectly meets your needs. A well-chosen subrack system will not only protect your electronic components but also enhance the performance and longevity of your entire system.
