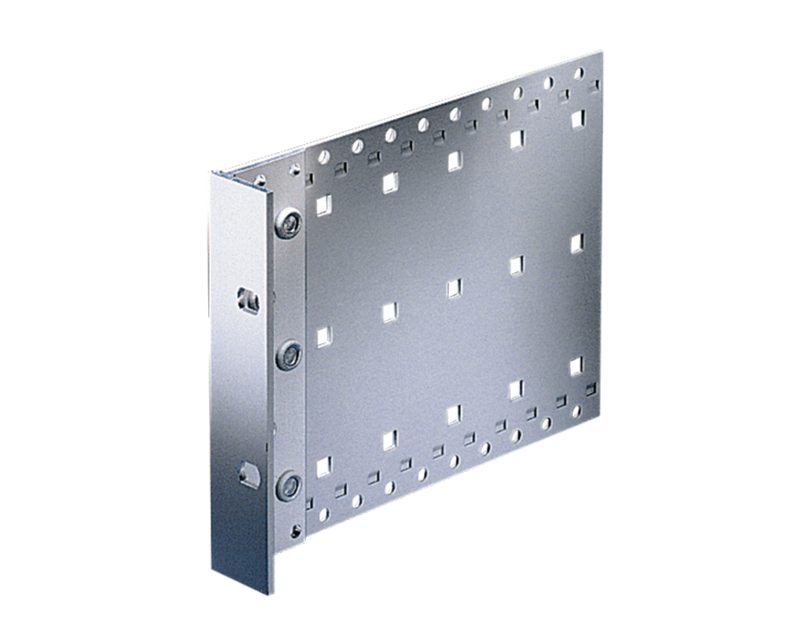

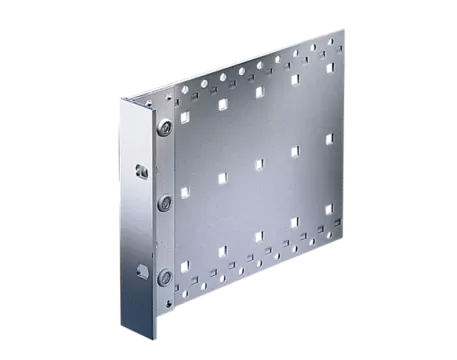

Bracket and Side Plate for BEK&BEG Subrack
Comply with GB/T1952/IEC60297 structural dimension standards

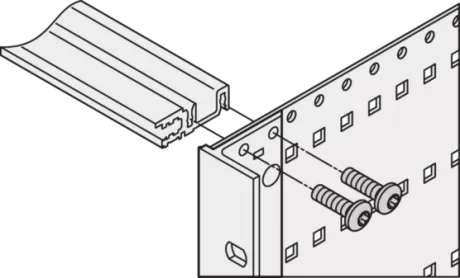

Flange with installation slot for installing EMC electromagnetic shielding spring,
Material: extruded aluminum profiles,
Surface treatment: anodizing, Chromic acid passivation.
The waist round hole can be used in conjunction with screws to secure the chassis to the cabinet
