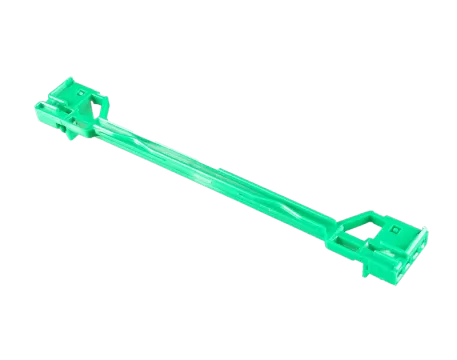

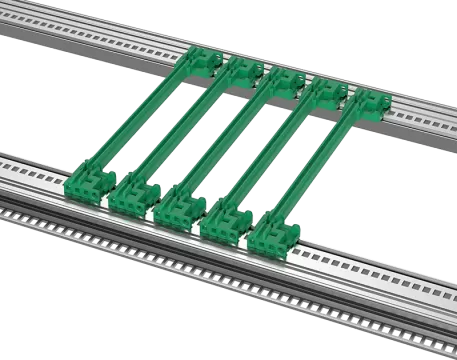

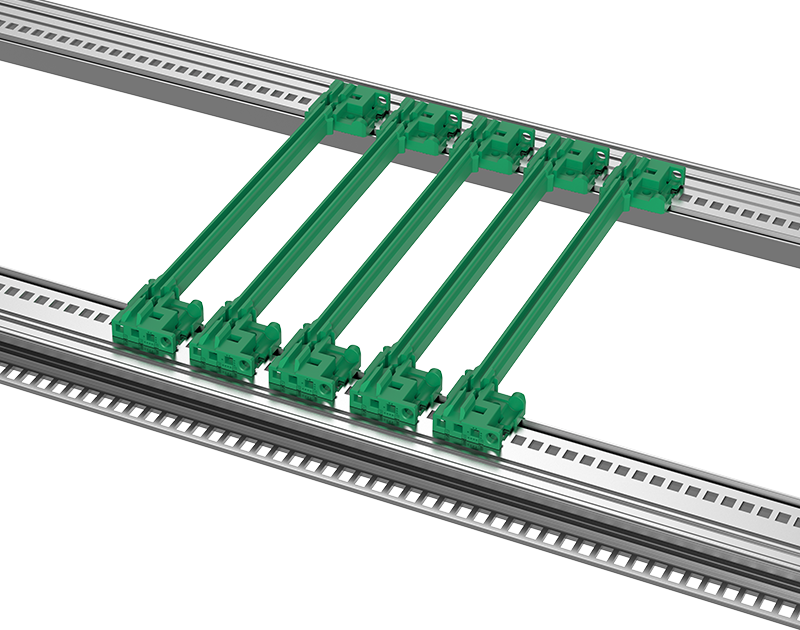

Guide Rail for EK&EG Subrack
For1.6-2.0mm thickness PCB boards.
Codable, coding chamber for mounting coding pegs.
Different color forms are used to identify different slots.
Red for system slots.
Green for power supply.
Grey and yellow for plug-in components.
Only available for EK&EG、EK+&EG+series subracks.
