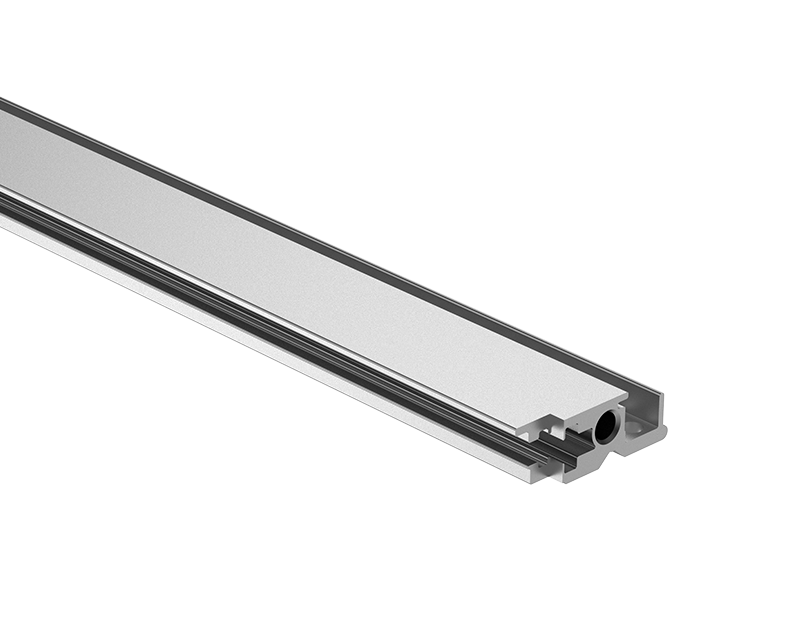

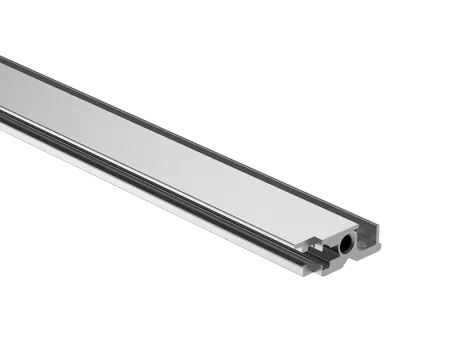

Horizontal Rail for EK&EG Subrack
Used for mounting PCB guide rail and fixing panel
Mounting top and bottom

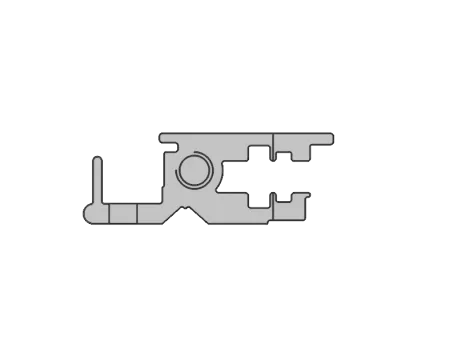

Aluminum extrusion, anodized finish, conductive contact surface
PRODUCT ATTRIBUTES
Product Type: Horizontal Rail
Product Family：EK
Type: Lightweight
Rack Width: 42HP、63HP、84HP、104HP
Product order number

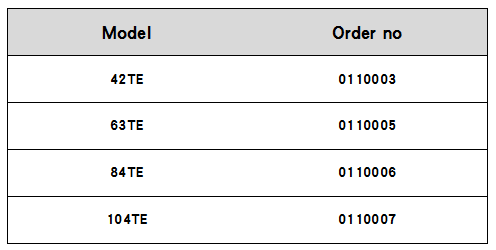

Product model and order number

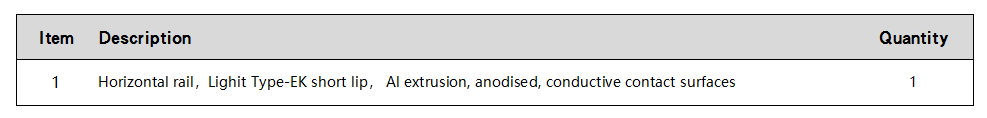

Delivery of this product includes the following item(s):
