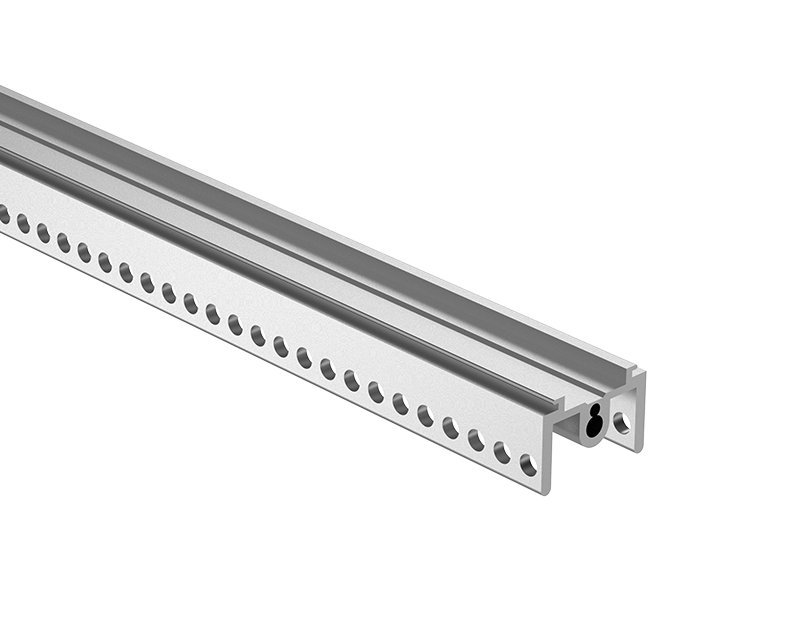

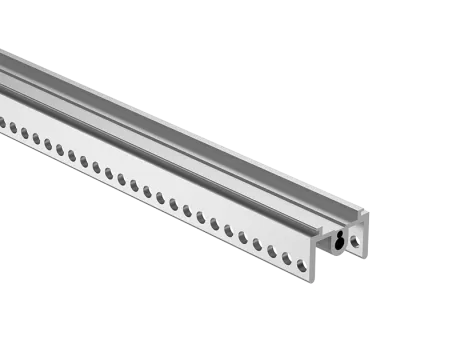

Horizontal Rail for EK&EG Subrack
Use for install backplane, Use cooperatively middle rail
Can be used in conjunction with the transfer center beam
Mounting central section
Aluminum extrusion, anodized finish, conductive contact surface
PRODUCT ATTRIBUTES
Product Type: Horizontal Rail
Product Family：EK、EG
Type: Lightweight
Rack Width: 42HP、63HP、84HP、104HP

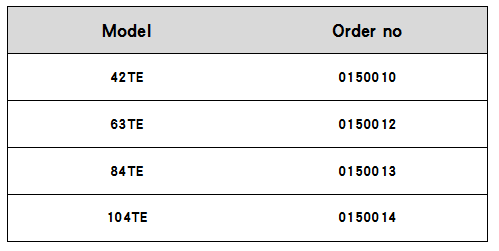

Product order number
Product model and order number

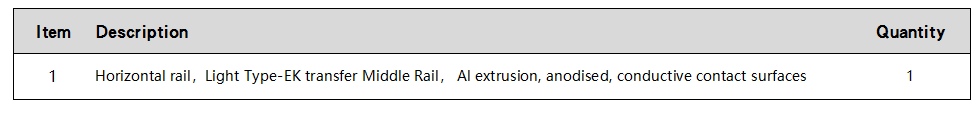

ITEM(S) DELIVERED
Delivery of this product includes the following item(s):
