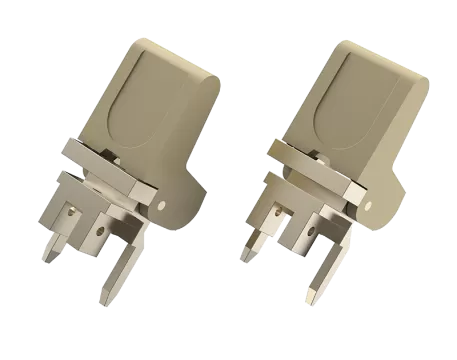

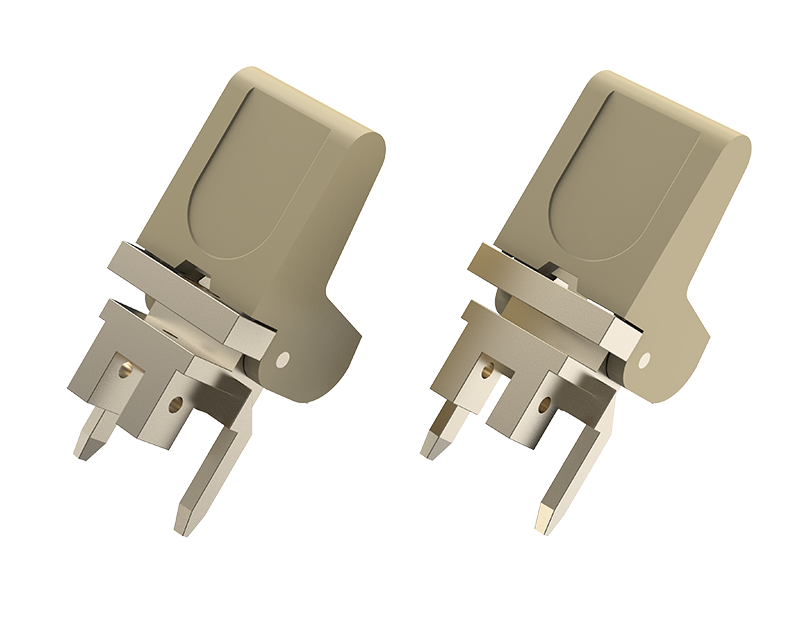

Type F & Type I Series Handle
This product is used for high-density connectors for unplugging and plugging, which can be directly connected to PCB
Comes with metal positioning claw, matching with F-type guide rail
Standard compliance: IEC60297-3-103
Patent No.: ZL201721518228.5
Brand: RDEKONO
Contact Us
Whether you’d like to get more info on what, why and how we do what we do, need help with what you’re creating, would like to partner up or just say hi!---we’d love to hear from you.
Oct. 01, 2023

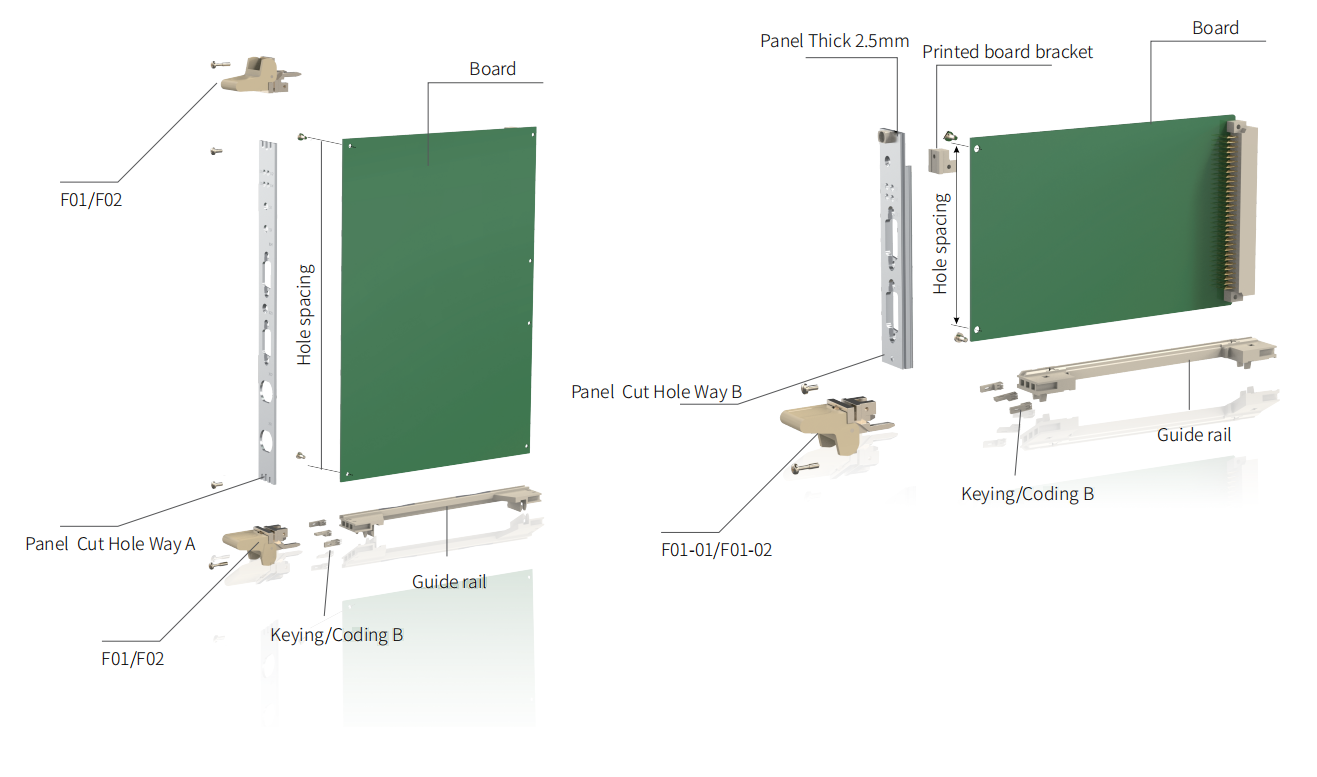

For PCB board of the subrack insertion and extraction, Provides assistance when pulled out.Composed of four parts: handle, scutcheon, printed board bracket, and shaft. Handle material: PC+GF20%, Fire retardant standard: UL94V1, printed board bracket material: die-cast zinc alloy surface nickel plating.
Oct. 08, 2023
The subrack does not have a series of profiles, and after receiving an order, it is usually customized and processed according to the drawings. Products from different customers and products of different specifications from the same customer all need to be redesigned and processed, resulting in higher costs;
